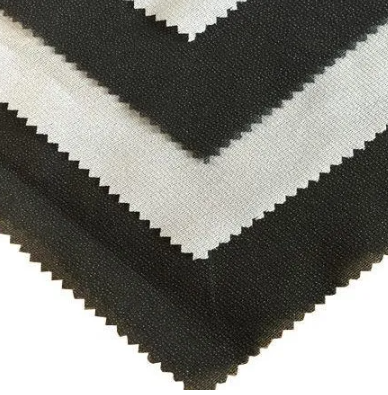

Woven Interlining
Enhancing Every Garment
This series is made using low-elastic semi-gloss DTY and woven with weft-insertion warp knitting. The fabric is finished with high-temperature dyeing, providing excellent elasticity and comfort.
This product uses advanced double-dot coating technology with high-performance PA adhesive powder. It performs well after dry cleaning and washing.
It is widely suitable for cotton, polyester-cotton blends, polyester-viscose blends, chemical fibers, wool and similar materials.
It is suitable for the front panels, collars, sleeves, waistbands, plackets, pockets and reinforcement parts of jackets, windbreakers, overcoats and suits.
Request samples and confirm compatibility with your shell fabric and intended care process before production.
| Product | Weight (g/m2) | Width(Inch) | Base Cloth Composition | Coating | Powder | Weaving specification | Base cloth specification | Fusing Condition | ||
| Temperature(℃) | Time(s) | Pressure (kg/cm2) |
||||||||
| H4010 | 65 | 60" | 100%Polyester | DOUBLE DOT | PA | 45支58X50 | Plain1/1 | 120~140 | 12~15 | 1.5~2.5 |
| H4012 | 84 | 60" | 100%Polyester | DOUBLE DOT | PA | 45支80X60 | Plain1/1 | |||
| H4020 | 36 | 60" | 100%Polyester | DOUBLE DOT | PA | 40X75 | Plain1/1 | |||
| H4020K | 42 | 60" | 100%Polyester | DOUBLE DOT | PA | 40X75K | Plain1/1 | |||
| H4021 | 40 | 60" | 100%Polyester | DOUBLE DOT | PA | 40X120 | Plain1/1 | |||
| H4021K | 44 | 60" | 100%Polyester | DOUBLE DOT | PA | 40X120K | Plain1/1 | |||
| H4022 | 47 | 60" | 100%Polyester | DOUBLE DOT | PA | 40X150 | Plain1/1 | |||
| H4022K | 52 | 60" | 100%Polyester | DOUBLE DOT | PA | 40X120 | Plain1/1 | |||
| H4023 | 53 | 60" | 100%Polyester | DOUBLE DOT | PA | 40X120 | Plain1/1 | |||
| H4023K | 58 | 60" | 100%Polyester | DOUBLE DOT | PA | 40X120 | Plain1/1 | |||
| H4025 | 58 | 60" | 100%Polyester | DOUBLE DOT | PA | 40X150 | Plain1/1 | |||
| H4025K | 63 | 60" | 100%Polyester | DOUBLE DOT | PA | 40X150 | Plain1/1 | |||
| H4308K | 31 | 60" | 100%Polyester | DOUBLE DOT | PA | 20X30 | Plain1/1 | |||
| H4309K | 36 | 60" | 100%Polyester | DOUBLE DOT | PA | 20X75 | Plain1/1 | |||
| H4310 | 36 | 60" | 100%Polyester | DOUBLE DOT | PA | 30X50 | Plain1/1 | |||
| H4310K | 42 | 60" | 100%Polyester | DOUBLE DOT | PA | 30X50K | Plain1/1 | |||
| H4315K | 52 | 60" | 100%Polyester | DOUBLE DOT | PA | 30X75K | Plain1/1 | |||
| H4320 | 44 | 60" | 100%Polyester | DOUBLE DOT | PA | 40X75 | Plain1/1 | |||
| H4320K | 48 | 60" | 100%Polyester | DOUBLE DOT | PA | 40X75 | Plain1/1 | |||
| H4322 | 53 | 60" | 100%Polyester | DOUBLE DOT | PA | 40X100 | Plain1/1 | |||
| H4325 | 58 | 60" | 100%Polyester | DOUBLE DOT | PA | 40X100 | Plain1/1 | |||
| H4600 | 85 | 60" | 65%Polyester/35%Viscose | DOUBLE DOT | PA | |||||
| H4601 | 95 | 60" | 65%Polyester/35%Viscose | DOUBLE DOT | PA | |||||
| H4730 | 70 | 60" | 65%Polyester/35%Viscose | DOUBLE DOT | PA | |||||
| H4731 | 80 | 60" | 65%Polyester/35%Viscose | DOUBLE DOT | PA | |||||
| H4732 | 90 | 60" | 65%Polyester/35%Viscose | DOUBLE DOT | PA | |||||
| H4733 | 100 | 60" | 65%Polyester/35%Viscose | DOUBLE DOT | PA | |||||
| H4734 | 110 | 60" | 65%Polyester/35%Viscose | DOUBLE DOT | PA | |||||
| H4735 | 120 | 60" | 65%Polyester/35%Viscose | DOUBLE DOT | PA | |||||
| H4736 | 130 | 60" | 65%Polyester/35%Viscose | DOUBLE DOT | PA | |||||
| H4737 | 140 | 60" | 65%Polyester/35%Viscose | DOUBLE DOT | PA | |||||
| H4502.M | 33 | 60" | 100%Polyester | DOUBLE DOT | PA | |||||
| H4505.S | 60 | 60" | 100%Polyester | DOUBLE DOT | PA | |||||
| H4506.MH | 68 | 60" | 100%Polyester | DOUBLE DOT | PA | |||||
| H4507.S | 68 | 60" | 100%Polyester | DOUBLE DOT | PA | |||||
| H4509.HH | 76 | 60" | 100%Polyester | DOUBLE DOT | PA | |||||
| Due to the wide variety of existing fabrics used by the clothing industry, we suggest that the test of the interlining, fabrics and the machine should be tested before using. | ||||||||||
Weft-insertion warp-knit interlining made with low-elastic semi-gloss DTY, finished by high-temperature dyeing and double-dot PA coating. Select the model by weight, composition, fabric hand and garment construction using the Specification table.
Consider this series for front panels, collars, sleeves, waistbands, plackets, pockets and reinforcement areas in jackets, windbreakers, overcoats and suits. Compatibility with cotton, blended fabrics, synthetic fibres and wool must be confirmed with the intended shell fabric.
Before production, test the selected interlining together with your shell fabric on the actual fusing equipment. Check appearance, bond, handle and dimensional stability after the intended wash or dry-cleaning process. Model-specific fusing conditions are starting points for trials.
Request a sample or discuss your fabric. Please share the model, garment part, shell-fabric composition, target hand and care requirements.
