Woven Interlining
Enhancing Every Garment
This page lists H7-series plain-woven models from 14 to 125 g/m². The table specifies a 60-inch width, 100% polyester base cloth, PA double-dot coating and the yarn/weave details for each listed model. Select a specific model rather than treating the full range as one specification.
The H7 range is presented for front panels, collars, sleeves, waistbands, plackets, pockets and reinforcement areas in jackets, windbreakers, overcoats and suits. Final suitability depends on the shell fabric and the required hand feel. Test the proposed model with the actual fabric before production.
The table displays a fusing reference of 120–140°C, 12–15 seconds and 1.5–2.5 kg/cm² for model H7190. This is a starting reference for that displayed row, not a universal setting for all H7 models, fabrics or presses. Confirm temperature at the bonding interface, time and pressure on the buyer’s own fusing machine, then evaluate adhesion, appearance, adhesive strike-through, hand feel and the intended care process.
For a sample recommendation, send the preferred model (if known), shell-fabric composition and weight, fabric finish or stretch, garment area, target hand feel, care process, required width and estimated quantity. Contact UBL for a fabric-matching discussion.
| Product | Weight(g/m2) | Width(Inch) | Base Cloth Composition | Coating | Powder | Weaving specification | Base cloth specification | Fusing Condition | ||
| Temperature(℃) | Time(s) | Pressure(kg/cm2) | ||||||||
| H7190 | 14 | 60" | 100%Polyester | DOUBLE DOT | PA | 10DX10D | Plain 1/1 | 120~140 | 12~15 | 1.5~2.5 |
| H7191 | 17 | 60" | 100%Polyester | DOUBLE DOT | PA | 15DX5D | Plain 1/1 | |||
| H7292 | 22 | 60" | 100%Polyester | DOUBLE DOT | PA | 20DX20D | Plain 1/1 | |||
| H7293 | 25 | 60" | 100%Polyester | DOUBLE DOT | PA | 20DX30D | Plain 1/1 | |||
| H7391 | 28 | 60" | 100%Polyester | DOUBLE DOT | PA | 30DX30D | Plain 1/1 | |||
| H7391M | 30 | 60" | 100%Polyester | DOUBLE DOT | PA | 30DX30M | Plain 1/1 | |||
| H7392 | 26 | 60" | 100%Polyester | DOUBLE DOT | PA | 30DX20D | Plain 1/1 | |||
| H7393 | 30 | 60" | 100%Polyester | DOUBLE DOT | PA | 30DX30D | Plain 1/1 | |||
| H7393M | 33 | 60" | 100%Polyester | DOUBLE DOT | PA | 30DX30M | Plain 1/1 | |||
| H7395 | 36 | 60" | 100%Polyester | DOUBLE DOT | PA | 30DX50D | Plain 1/1 | |||
| H7595 | 45 | 60" | 100%Polyester | DOUBLE DOT | PA | 50DX50D | Plain 1/1 | |||
| H7596 | 53 | 60" | 100%Polyester | DOUBLE DOT | PA | 50DX75D | Plain 1/1 | |||
| H7597 | 58 | 60" | 100%Polyester | DOUBLE DOT | PA | 75DX75D | Plain 1/1 | |||
| H7556 | 65 | 60" | 100%Polyester | DOUBLE DOT | PA | 75DX75D | Plain 1/1 | |||
| H7557 | 75 | 60" | 100%Polyester | DOUBLE DOT | PA | 75DX75D | Plain 1/1 | |||
| H7558 | 85 | 60" | 100%Polyester | DOUBLE DOT | PA | 75DX100D | Plain 1/1 | |||
| H7559 | 95 | 60" | 100%Polyester | DOUBLE DOT | PA | 100DX100D | Plain 1/1 | |||
| H7560 | 105 | 60" | 100%Polyester | DOUBLE DOT | PA | 100DX150D | Plain 1/1 | |||
| H7561 | 115 | 60" | 100%Polyester | DOUBLE DOT | PA | 100DX150D | Plain 1/1 | |||
| H7562 | 125 | 60" | 100%Polyester | DOUBLE DOT | PA | 100DX200D | Plain 1/1 | |||
| H7556B.M | 70 | 60" | 100%Polyester | DOUBLE DOT | PA | 75DX75D | Plain 1/1 | |||
| H7558B.H | 90 | 60" | 100%Polyester | DOUBLE DOT | PA | 100DX150D | Plain 1/1 | |||
| H7561B.H | 120 | 60" | 100%Polyester | DOUBLE DOT | PA | 100DX250D | Plain 1/1 | |||
| Due to the wide variety of existing fabrics used by the clothing industry, we suggest that the test of the interlining, fabrics and the machine should be tested before using. | ||||||||||

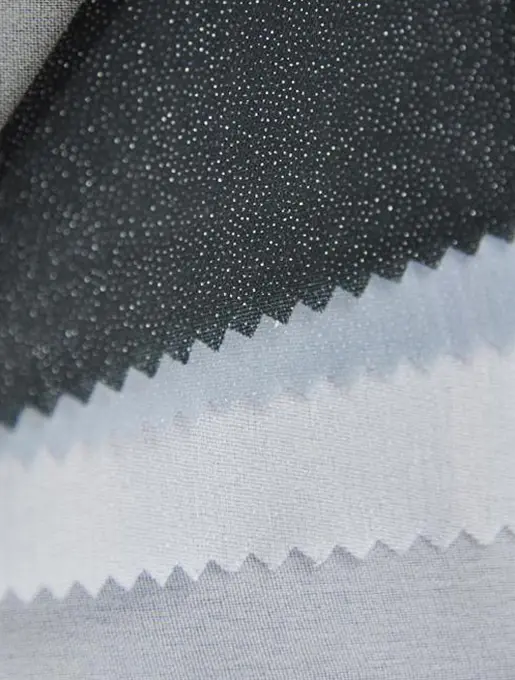

This page describes the H7-series PA double-dot plain-woven fusible interlining models shown in the specification table. Refer to the selected model for composition, finished weight, width and coating details.
Fusing conditions are model- and fabric-dependent. Confirm the applicable technical guidance and run a trial with your own fabric and production equipment before bulk use. Evaluate adhesion, appearance, hand feel and the intended care process.
For a sample recommendation, share your shell-fabric composition and weight, garment area, care requirements, preferred model, required width and estimated quantity. Contact UBL about interlining samples.
